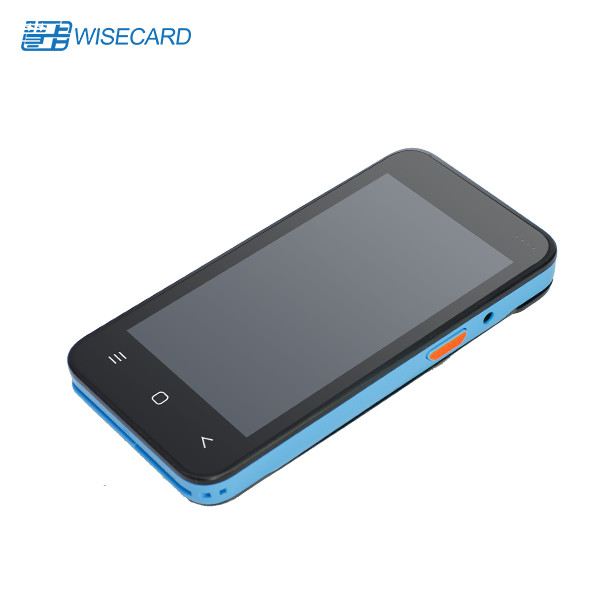

Mini POS Handheld touch screen GPRS QR code magnetic IC card reader
★ Integrated Industrial Design
Stylish appearance with complete color touch screen, skid-proof rubber layer design on the back; unique Push-talk function can realize one to one and one to many cross connections of the devices’ holders based on the local area network platform.
★ Full Functionality
Powerful smart mobile terminal with WIFI and 3/4G communication modules make the various mobile payment on the go, such as magnetic card, NFC, barcode, QR code and sound wave payment are realized on the terminal.
★ High Intelligence
Open and intelligent Android OS device is applicable to wide and complex business environments by development and loading of variousindustrial applications.
| Product Specifications |
| Items | Specifications |
| Operation | Security OS, Android 5.1 |
| CPU | Qualcomm Quad-core, 1.1 GHz |
| Memory | 1GB DDR3, 8GB Flash Optional: 2+16GB |
| Display | 4.5 inch, Resolution: 854*480 |
| Screen | High Sensitivity Capacitive Touch Screen |
| Camera | Rear Camera: 5 Mega Pixel Auto Focus Support Optional: 0.3M, FF; Support 1D/2D Code |
| Communication | 2G: GSM/EDGE 850/900/1800/1900 3G:WCDMA Band 1/2/5/8 4G: FDD Band 1/3/7; TDD Band: 38/39/40/41 |
| WIFI | Support 2.4G/5G, a/b/g/n |
| Bluetooth | BT 4.0+BLE |
| GPS | Support: GPS/A-GPS, GLONASS, BEIDOU |
| NFC | ISO/IEC 14443 Type A&B, Felica,ISO/IEC 14443&7816 |
| IC Card Reader | ISO/IEC 7816, Conform toEMV L1/L2 |
| Magnetic Card Reader | ISO/IEC 7816, Track 1/2/3, Bi-directional |
| PSAM | 1 PSAM Slots, ISO/IEC 7816 |
| Indicator | 4 Independent POS Indicators |
| Buzzer | Support |
| Memory Extension | Micro SD/TF, 64GB |
| USB Port | Micro USB, OTG Supported |
| SIM Card Slot | 1 Slot, 25*15mm |
| Audio | 1 Speaker, 1 Mircophone |
| Auxiliary Lamp | Support Red Light Position, White Light Compensation |
| Keys | Power Key, Push-talk Key,Volume Key, Multifunction Key(Default Scaning Key); Touch Key: MENU/HOME/BACK Keys |
| Battery | 3000mAh |
| Power | Input: 100-240V, 50/60 Hz 0.35A |
| Dimensions | 136*69*22.1 mm |
| Weight | 225g |
| Accessories | Adaptor, USB Cable |
| Optional Accessories | BT Earphone, BT Printer, Waist Pocket |
| Certifications | PCI PTS, EMV L1&L2, EMV Contactless L1, Visa Paywave, MasterCard Paypass, MasterCard TQM, CE, Conformity Certificate of Explosion-Proof
|
FAQ
Q: Are you a factory or simply a trading company?
A: We are a true OEM/ODM factory. Please read our company profile, for more information on this issue.
Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
Q: Can we print our Logo on the products? What is MOQ?
A: We can print your own Logo on it as you like. There is no MOQ for stock models. For customized models will depending on your requests. Different methods are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!
Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T.
Q: How long is the warranty time?
A: As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Company Information:
Wisecard (a WiseGroup company) is a global solution provider that has been providing innovative payment and secure solutions to financial institutions, government entities and telco operators worldwide.
Wisecard have been providing EMV smart card, EMV biometric card, EMV perso software, card issuance, EMV embossers, POS terminals, smart banking, smart teller machine, kiosk, vending machine, biometric POS, Hardware Secure Module, mobile payment platform, private label card solution, prepaid card solution, card management system to partners in more than 60 countries worldwide. Wisecard’s product suite empower large global financial institutions and government sectors as well as small to medium sized retail banks.
Wisecard solutions are adapting to the highest and latest secure standard, and the solutions have been fully tested and certified by international test labs, like FBI, STQC, EMV, PCI DSS, PA DSS, VISA, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay and etc.
Notes: FBI, STQC, EMV, PCIDSS, PADSS, Visa, MasterCard, China UnionPay, JCB, AmEx, Discover, RuPay is a registered trademark. All trademarks referenced here are the property of the respective owners.
